11 Oct Dual C819

Posted at 22:19h in All stock, Decks by
0 Likes

STEREO CASSETTE DECK

120eur

General

Manufacturer: Dual

Model: C819

Year of manufacture: 1978–1980

Made in: Germany

Dimensions: 440 × 150 × 360 mm

Weight: approx. 7.5 kg

Technical Data

Type: Stereo cassette deck

Track system: 4-track, 2-channel stereo

Tape speed: 4.76 cm/s

Heads: 2 (combined record/playback head and erase head)

Tape types supported: Type I (Normal), Type II (CrO₂), Type III (FeCr)

Noise reduction: Dolby B

Frequency response: 20 Hz – 15 kHz (Normal); 20 Hz – 16 kHz (CrO₂ and FeCr)

Wow & Flutter: less than 0.07% WRMS (playback)

Signal-to-Noise Ratio: up to 67 dB with Dolby B (FeCr tape)

Inputs: Line input (RCA), DIN input, microphone inputs (6.3 mm)

Outputs: Adjustable line output (RCA and DIN), headphone output (6.3 mm)

Power consumption: approx. 16 W

Special Features

– Front-loading cassette mechanism with belt-driven transport

– Manual recording level controls with separate left and right channel adjustment

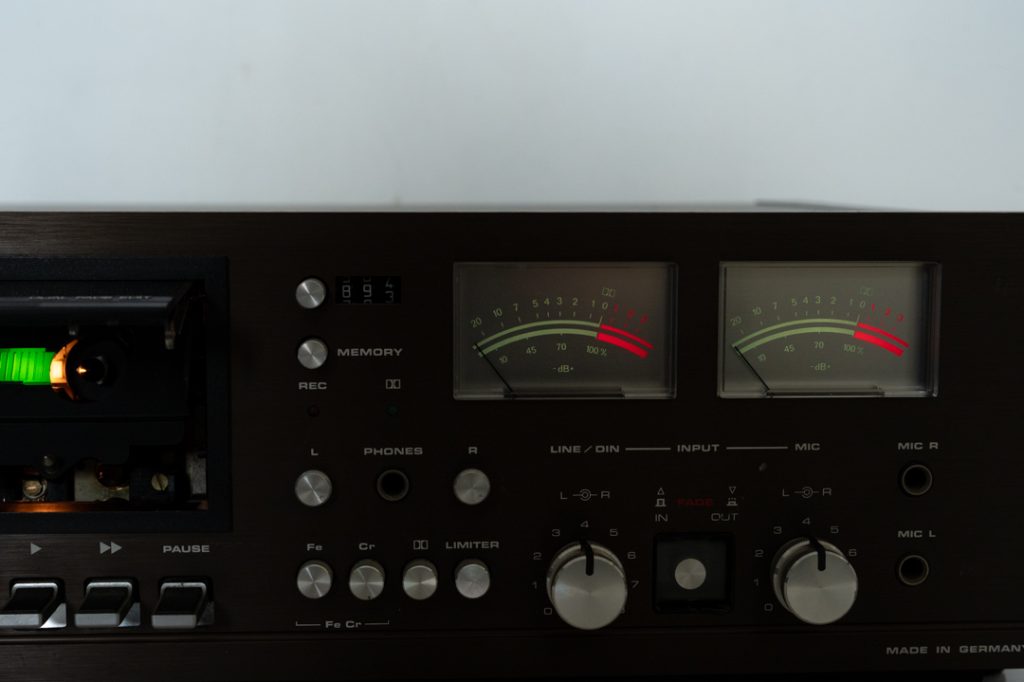

– Analog VU meters for monitoring recording levels

– Dolby B noise reduction to reduce tape hiss during playback

– Mechanical tape counter with memory stop function

– Automatic stop at the end of the tape

– Dedicated microphone inputs for stereo recording
