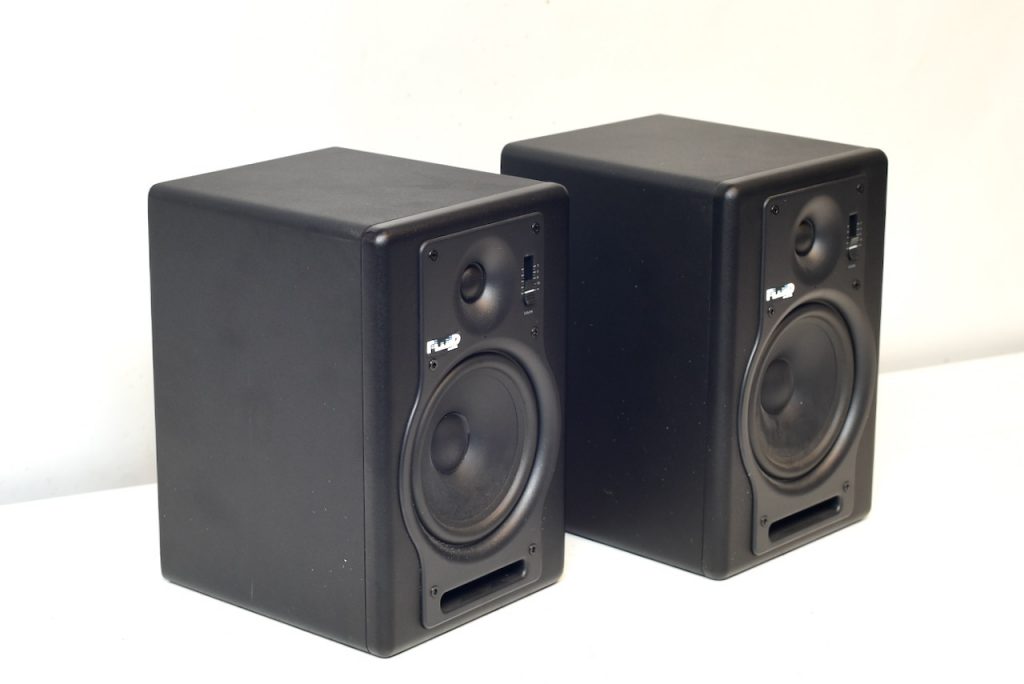

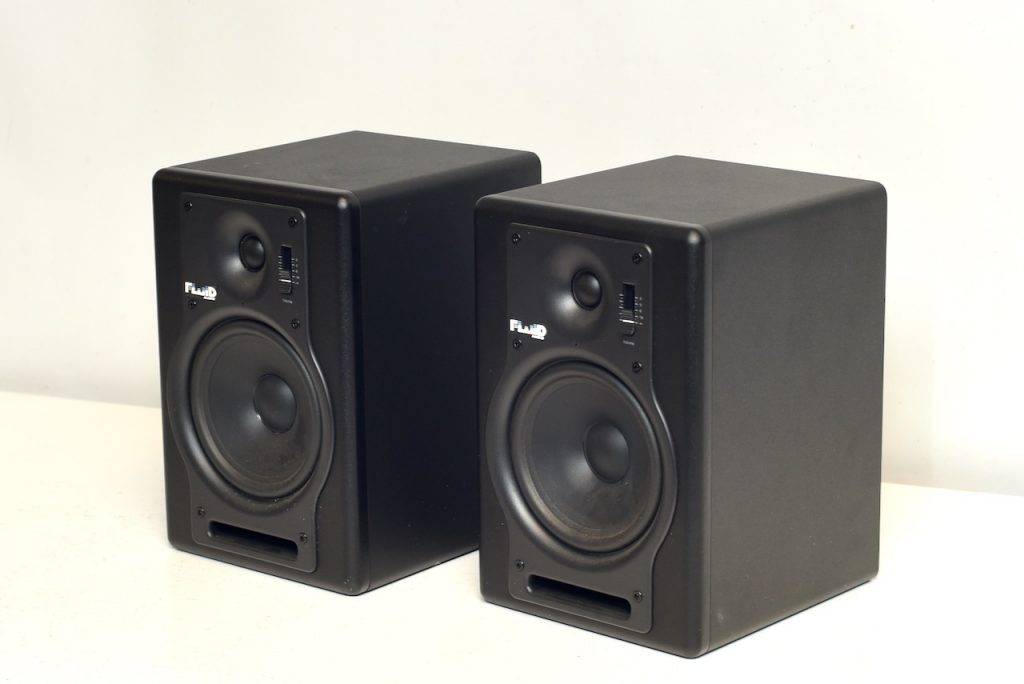

Advanced 70-Watt Bi-Amplified

Specifications

• Frequency response:
• Crossover frequency:
• Low-frequency amplifier power: • High-frequency amplifier power: • Signal-to-noise:
• Polarity:
• Input impedance:
• Input sensitivity:

• Power:
• Protection:

• Cabinet:
• Size (single monitor):
• Weight (single monitor):

Package Contents

49 Hz – 22 kHz 2.5 kHz
40 watts
30 watts

> 100 dB (typical A-weighted)
Positive signal at + input produces outward LF one displacement 20 k ohms balanced, 10 k ohms unbalanced
85 mV pink noise input produces 90dBA output SPL
@ one meter with volume control at maximum

Factory programmed for either 115V ~50/60 Hz or 230V~50/60 Hz RF interference, output current limiting, over
temperature, turn-on/off transient, subsonic filter,

external mains fuse
Vinyl-laminated MDF
260 x 176 x 195 mm / 10.25 * 6.9 * 7.7 in

5 kg / 11 lbs
