11 Oct JVC 4VR-5446X

Posted at 22:52h in All stock, Receivers by
0 Likes

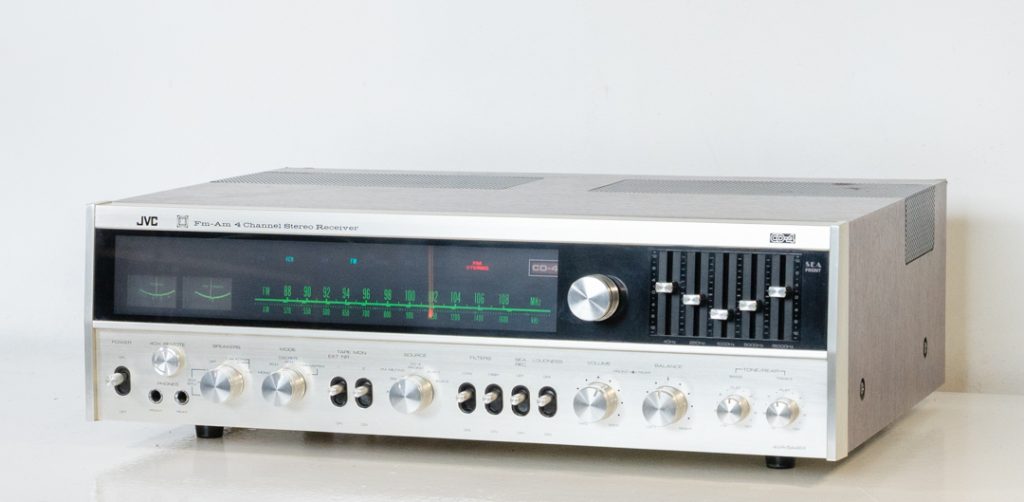

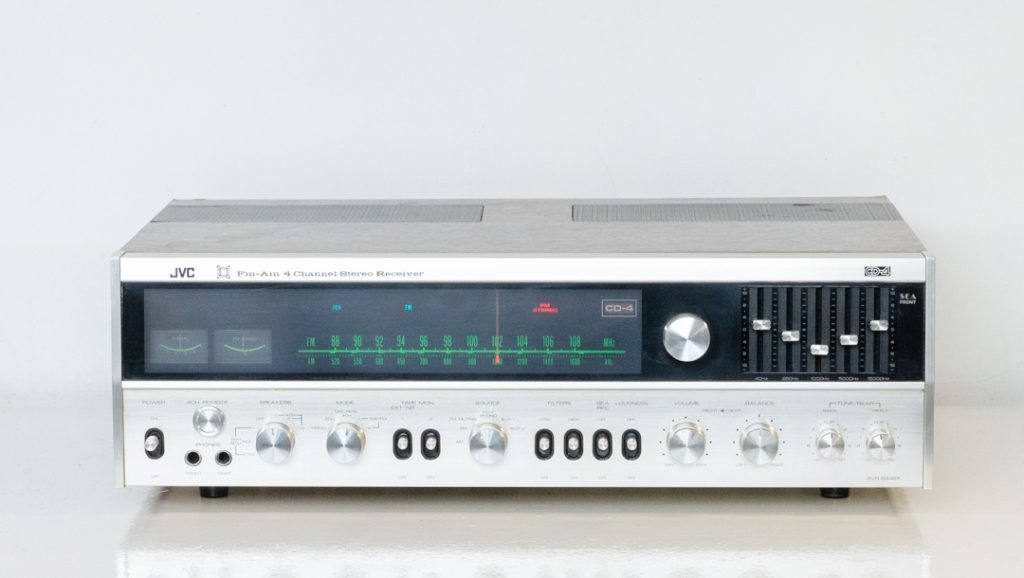

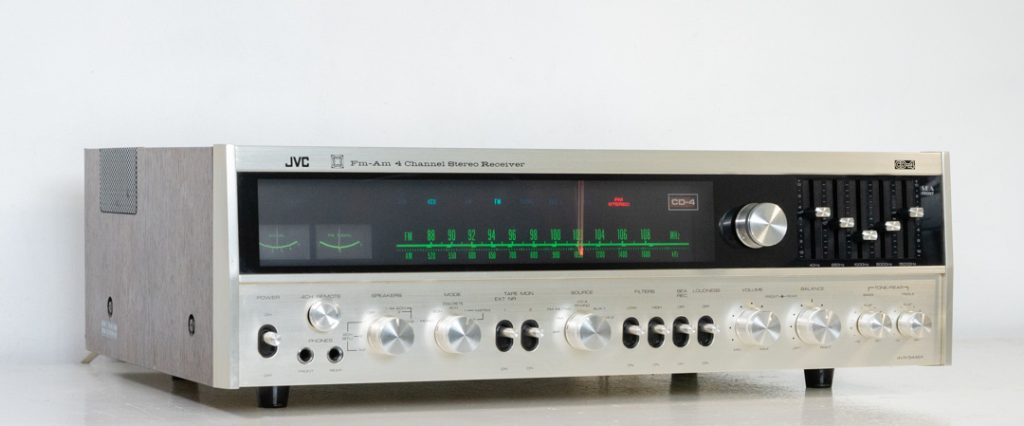

4-CHANNEL AM/FM STEREO RECEIVER

370eur

General
Manufacturer: JVC
Model: 4VR-5446X
Year of manufacture: 1973
Made in: Japan
Dimensions: 508 × 164 × 391 mm
Weight: approx. 15.8 kg

Technical Data
Type: 4-channel quadraphonic stereo receiver
Amplifier design: Solid-state
Power output: 4 × 21 W at 8 Ω (20 Hz – 20 kHz, all channels driven)
Power output (1 kHz): 4 × 26 W at 8 Ω
Dynamic power: 4 × 43 W at 8 Ω
Stereo bridge mode: 2 × 55 W at 8 Ω
Total harmonic distortion: 0.5% at rated output
Frequency response: 10 Hz – 30 kHz
Damping factor: 30
Speaker impedance: 4–16 Ω
Tuner: AM/FM
FM frequency range: 88–108 MHz

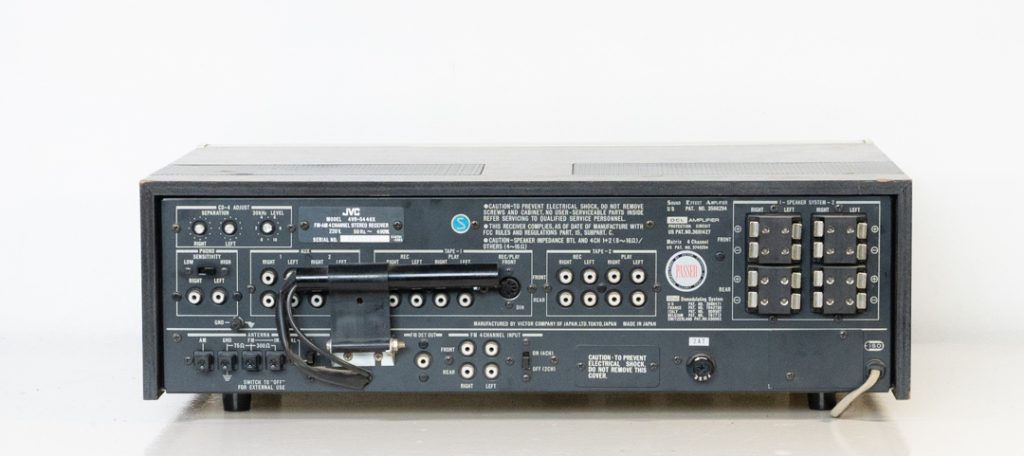

Inputs: Phono, AUX, tape monitor, 4-channel FM input
Outputs: Four-channel speaker terminals, tape recording outputs, front and rear headphone outputs
Equalizer: 5-band SEA graphic equalizer
Tone controls: Bass and treble
Filters: High-cut and low-cut
Loudness control: Yes

Special Features
– Quadraphonic amplifier architecture for four-channel surround playback
– Built-in CD-4 demodulator for compatible discrete four-channel vinyl records
– Supports CD-4, discrete and matrix quadraphonic playback formats
– Five-band SEA graphic equalizer for detailed tonal adjustment
– Independent bass and treble controls for rear channels
– Bridge mode allows operation as a higher-powered stereo amplifier

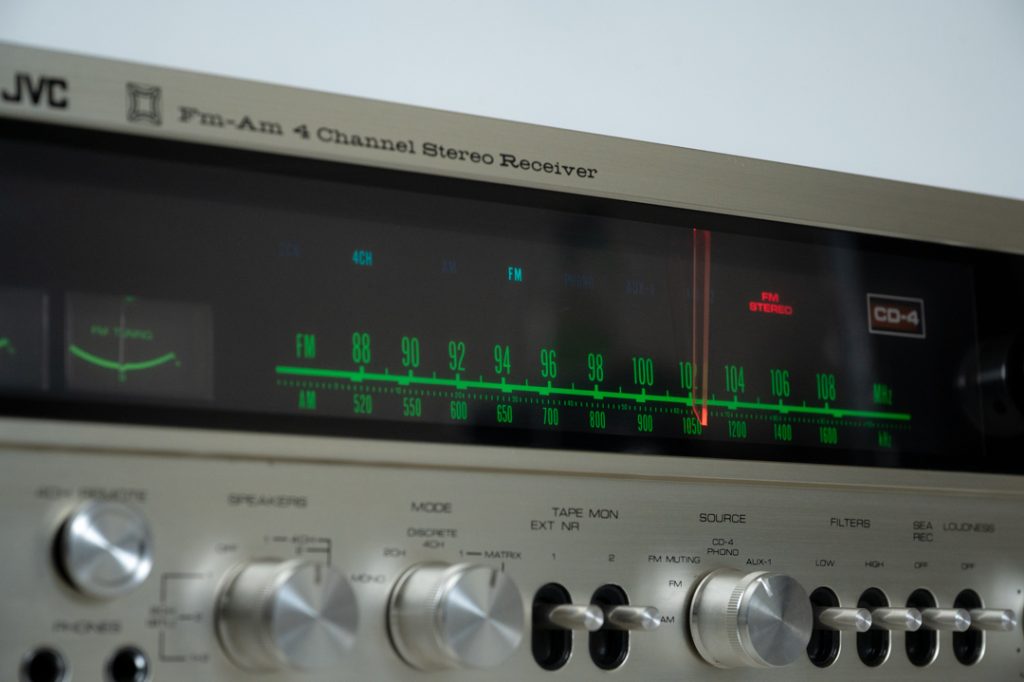

– Dedicated AM/FM tuner with analogue tuning display
– Dual phono inputs and two tape-monitor connections
