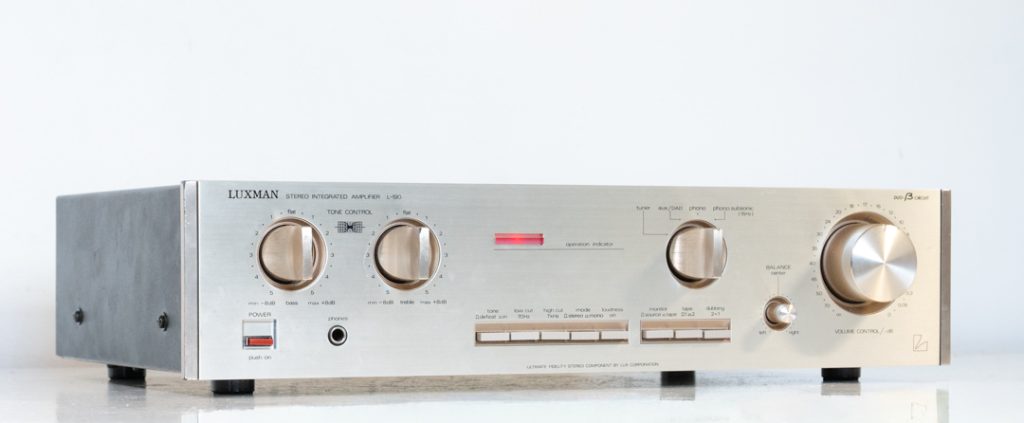

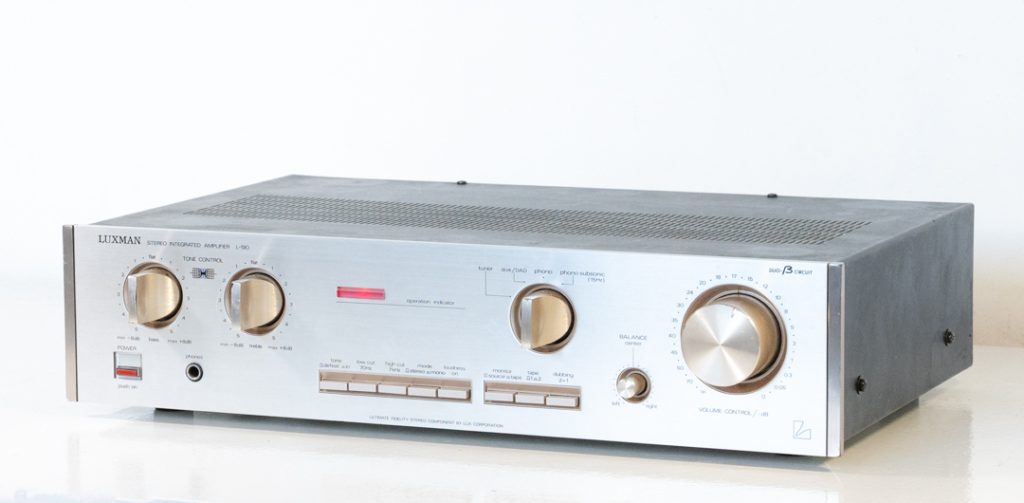

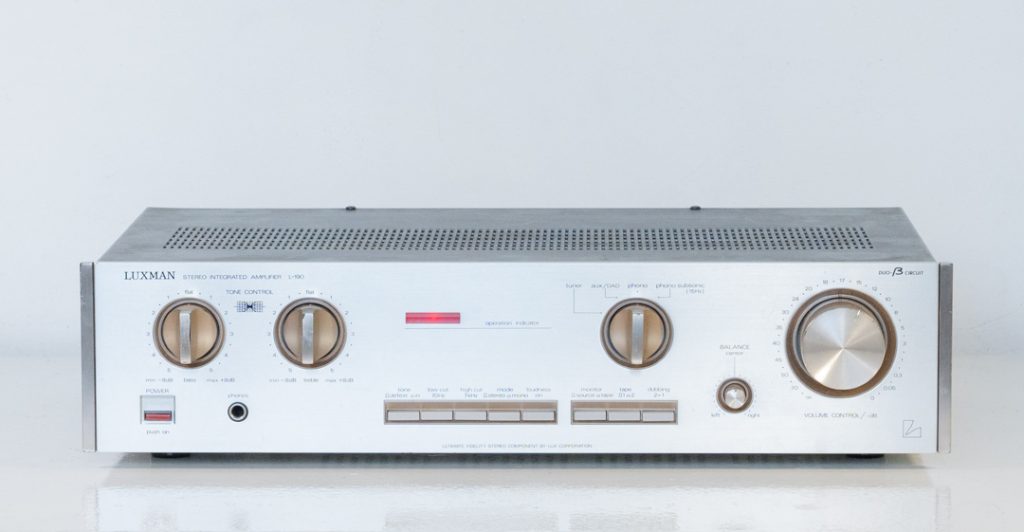

11 Oct Luxman L-190

Posted at 23:01h in All stock, Amplifiers by
0 Likes

STEREO INTEGRATED AMPLIFIER

160eur

General
Manufacturer: Luxman
Model: L-190
Year of manufacture: 1984–1986
Made in: Japan
Dimensions: 453 × 111 × 317 mm
Weight: 6.7 kg

Technical Data
Type: Solid-state stereo integrated amplifier
Power output: 30 W per channel at 8 Ω
Power output (DIN): 50 W per channel at 8 Ω
Power output at 4 Ω: 40 W per channel
Total harmonic distortion: 0.02%
Frequency response: 10 Hz – 100 kHz (line input)
Signal-to-Noise Ratio: 107 dB (line), 90 dB (phono MM)
Phono input: Moving magnet (MM)

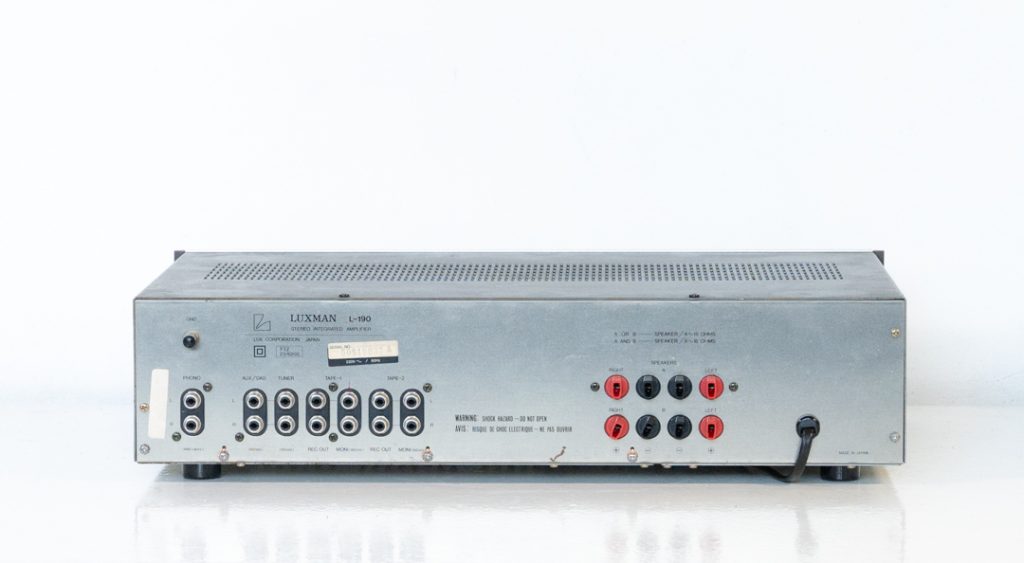

Inputs: Phono, tuner, AUX/DAD, 2 tape monitor inputs
Outputs: 2 tape outputs, headphone jack
Speaker connections: 2 pairs of speakers
Tone controls: Bass and treble
Filters: Subsonic and high-frequency filters

Special Features
– Duo-Beta DC amplifier circuitry
– Switchable tone controls for a more direct signal path
– Loudness compensation for low-volume listening
– Subsonic filter to reduce unwanted low-frequency noise
– High-frequency filter to reduce hiss and unwanted treble
– Tape-to-tape dubbing capability
– Speaker selector for connecting multiple speaker pairs
