26 Jun Pioneer SA-3000

Posted at 16:38h in All stock, Amplifiers by
0 Likes

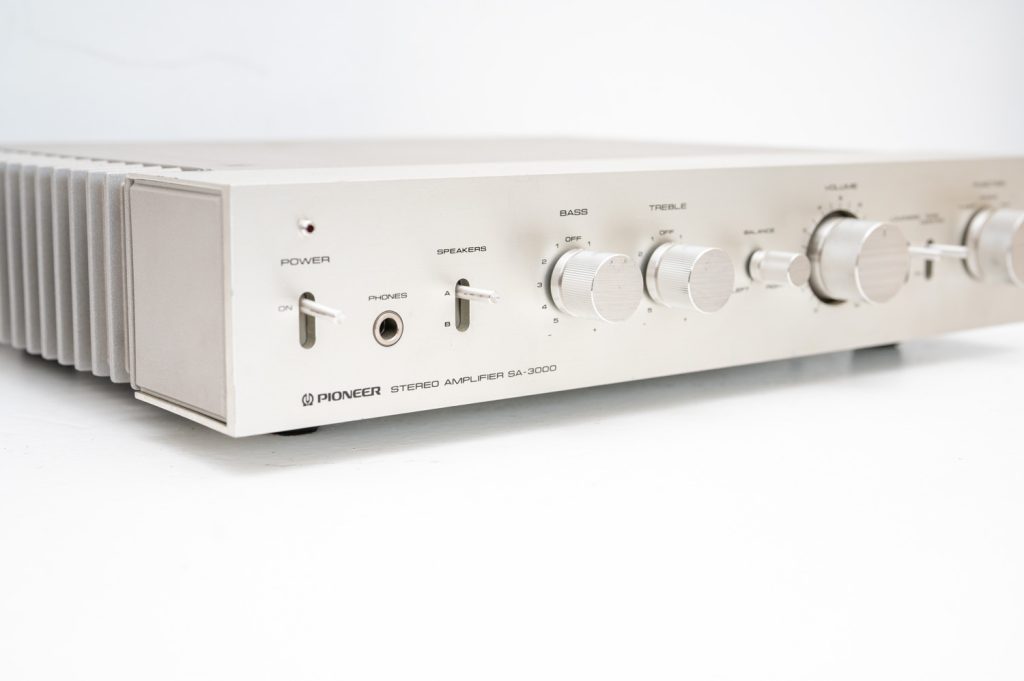

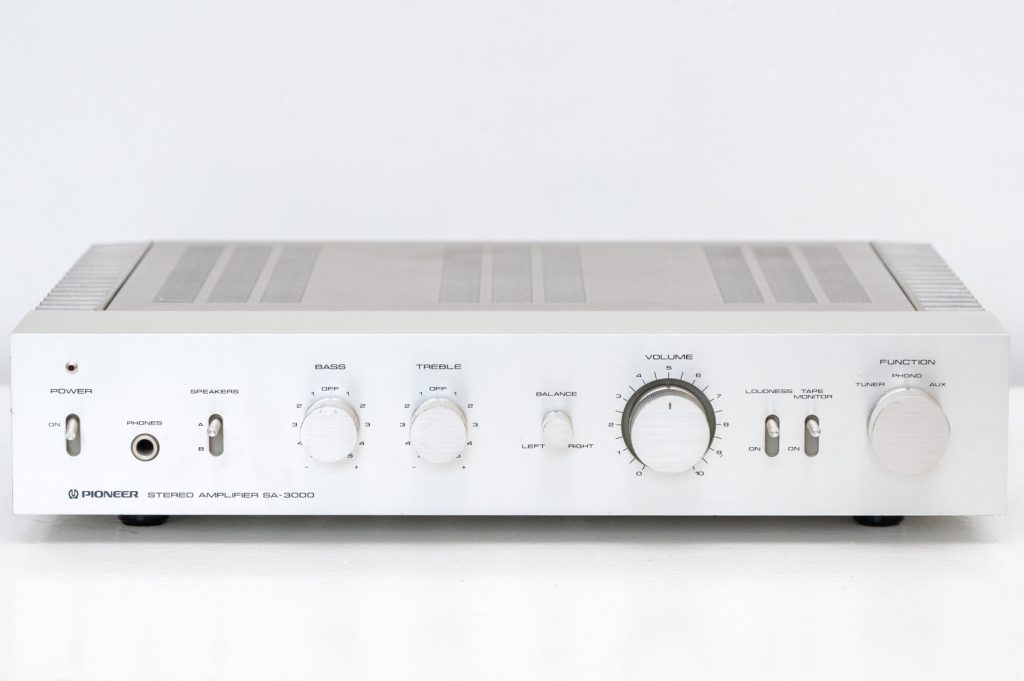

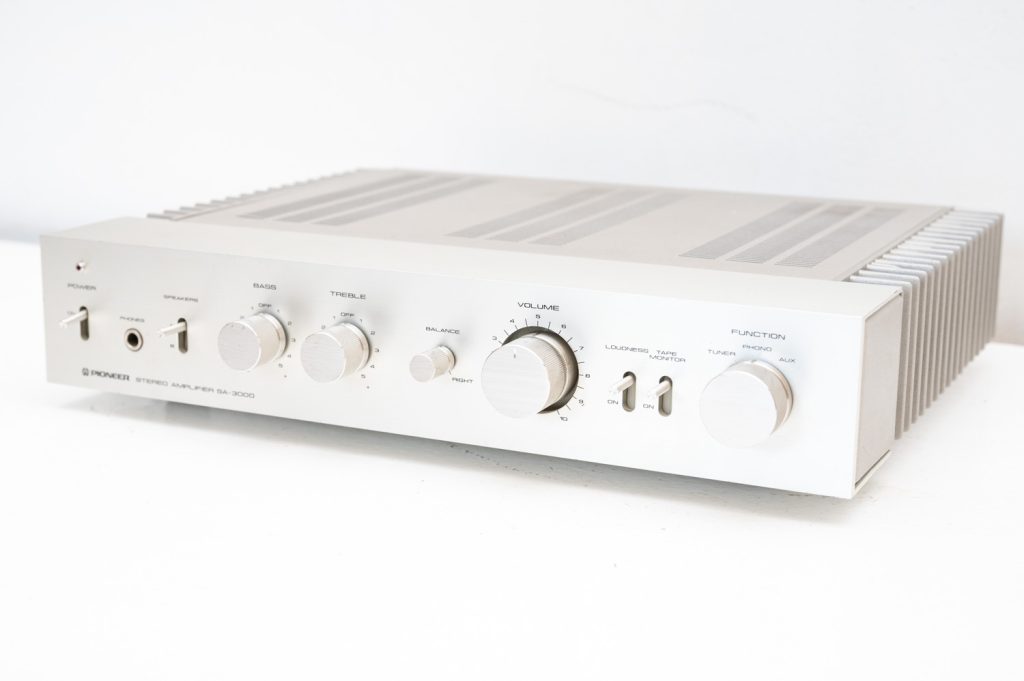

Integrated Amplifier

220eur



General

  • Manufacturer: Pioneer
  • Model: SA-3000
  • Model series: 3000 series
  • Type: Midi integrated amplifier
  • Years of manufacture: 1978 – 1980
  • Manufactured in: Japan
  • Color: Silver / rarely in black
  • Remote control: no
  • Power consumption: 330 W (max)
  • Dimensions: 380 x 83 x 295 mm (WxHxD)
  • Weight: 7.6 kg
  • Original price approx.: 750 DM

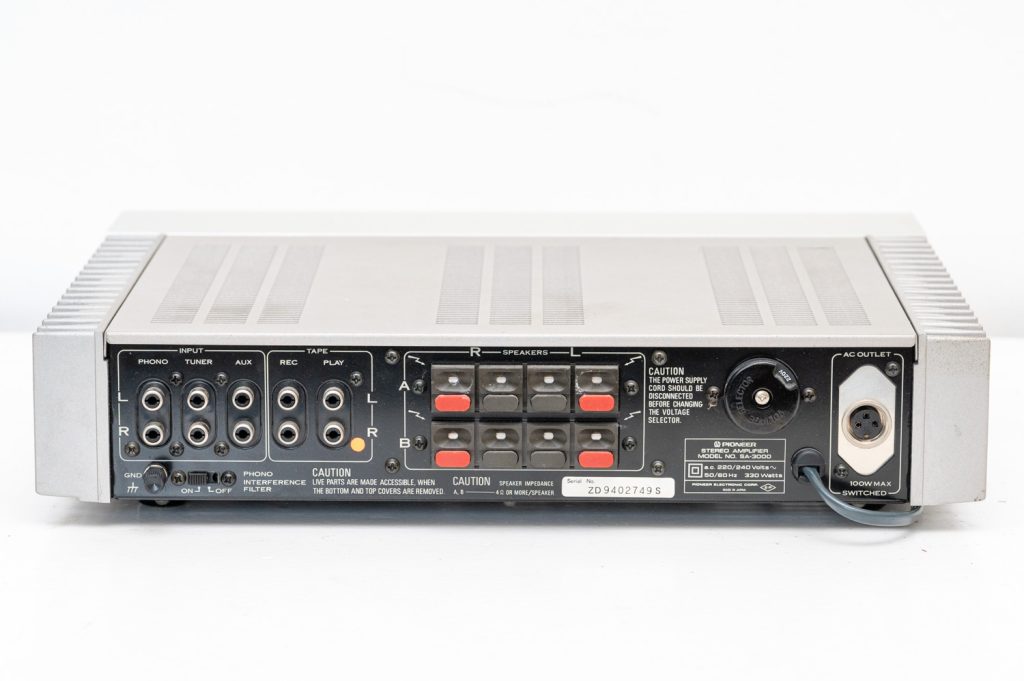

Connections

  • Number of inputs:
    • Phono : 2.5 mV, 50 kOhm (MM)
    • Tuner; 150 mV, 50 kOhm
    • AUX : 150 mV, 50 kOhm
    • Tape Play: 150 mV, 50 kOhm
  • Number of outputs:
    • Tape Rec: 150 mV, 50 kOhm
    • 4x loudspeaker (4 – 16 Ohm)

Technical Data

  • Continuous power (at distortion factor)
    • 8 Ohm: 2x 40 W (20-20.000 Hz)
    • 4 Ohm: 2x 60 W (20-20.000 Hz)
  • Dynamic power
    • 8 Ohm:
    • 4 Ohm:
  • Total harmonic distortion: < 0.02 %
  • Attenuation factor: 30 (8 Ohm, 20 – 20’000 Hz)
  • Frequency response:
    • PHONO: 20 – 20’000 Hz (±0.5 dB)
    • Aux, Tuner, Tape Play: 10 – 100’000 Hz (±1 dB)

Signal-to-noise ratio:

    • Phono: 86 dB
    • Tuner, Tape: 100 dB
  • Tone control:
    • Bass: ±10 dB (100 Hz)

Treble: ±10 dB (10 kHz)

  • Loudness: yes, +6 dB (100 Hz), +3 dB (10 kHz)
  • Mute: no
