11 Oct Sansui AX-7

Posted at 23:47h in All stock, Amplifiers, Mixers by
0 Likes

AUDIO MIXER / CONTROL AMPLIFIER

140eur

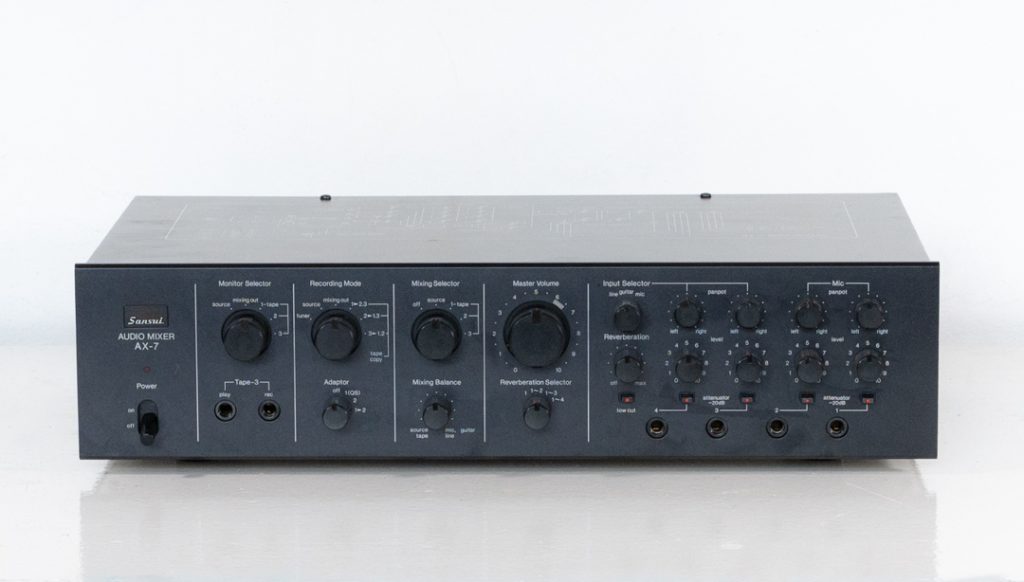

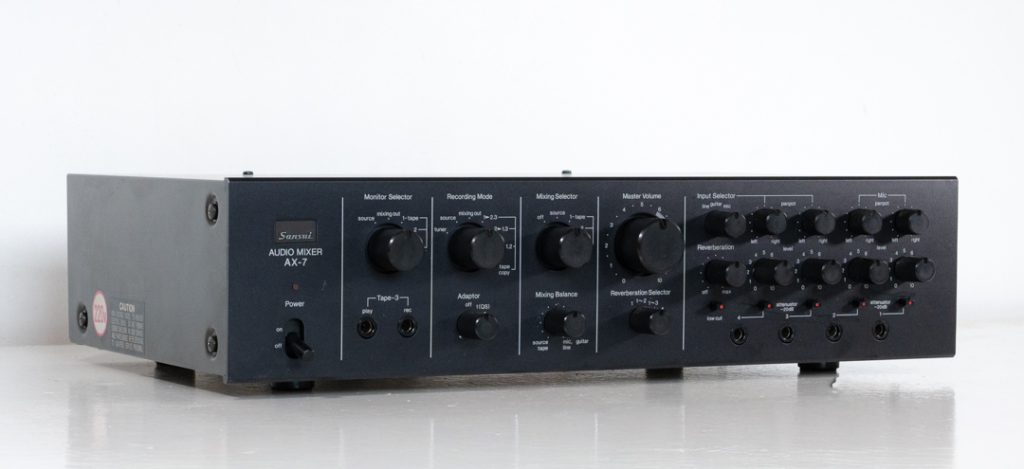

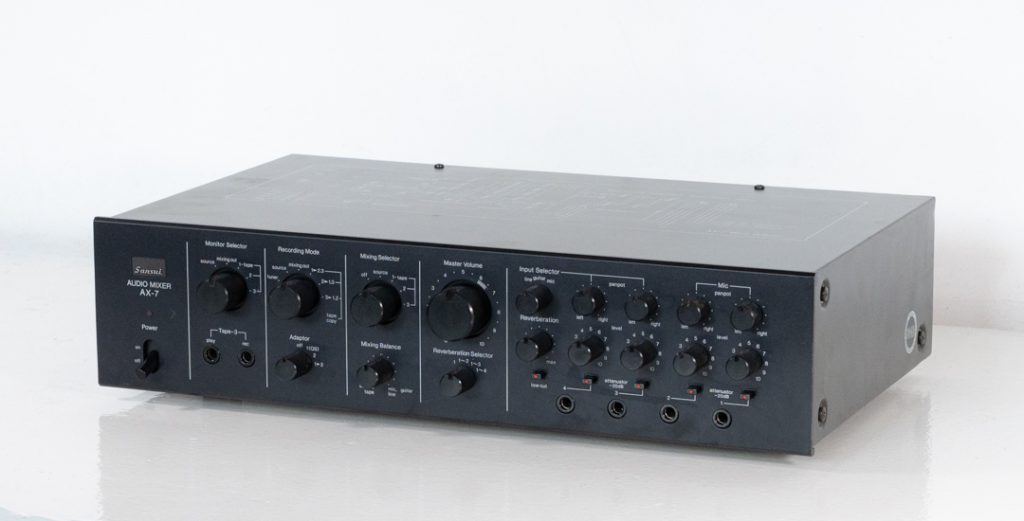

A versatile vintage audio mixer from Sansui, designed for users who want more control over their audio setup than a conventional amplifier provides. The AX-7 offers connections for microphones, electric guitars, tape decks and other audio sources, along with built-in reverb for adding echo and ambience. Its rack-mountable design and hands-on controls make it a useful choice for home recording, music practice, karaoke setups or vintage audio enthusiasts. Note that it is a mixer and control amplifier, not a standalone speaker power amplifier.

General
Manufacturer: Sansui
Model: AX-7
Era: Late 1970s
Made in: Japan
Dimensions: 430 × 110 × 285 mm
Weight: Approx. 5.1 kg

Technical Data
Type: Audio mixer / control amplifier
Frequency response: 20 Hz – 20 kHz
Total harmonic distortion: Less than 0.1%

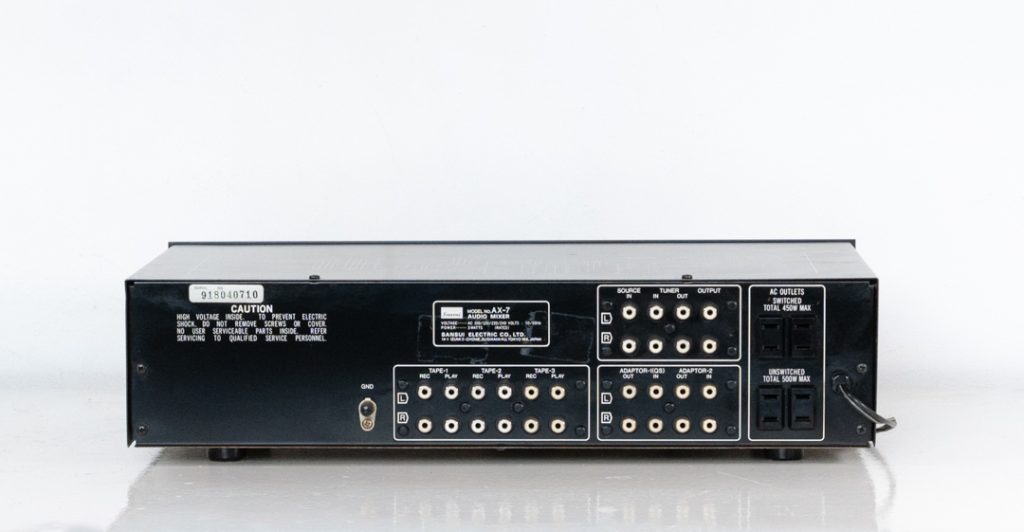

Inputs: 4 microphone channels, 2 electric guitar inputs, source/line inputs and 3 tape monitor circuits
Input sensitivity: 1 mV (mic), 20 mV (guitar), 150 mV (line)
Outputs: Line output, pre-out and tape recording outputs
Maximum output voltage: 5 V
Built-in effects: Spring reverb
Filter: Low-cut filter at 200 Hz
Rack mounting: Compatible with rack-mount adapters

Special Features
– Multiple microphone and guitar inputs for flexible audio mixing
– Built-in reverb for adding echo and ambience
– Pan controls for positioning sound in the stereo image
– Three tape monitor circuits for connecting recording equipment
– Low-cut filter for reducing unwanted low-frequency noise
– Classic late-1970s Sansui styling
